Centralized rsyslog server

Objective

Build a centralized logging environment where:

• SERVER receives logs from client1
• SERVER receives logs from client2
• Logs are stored in separate files:
  • /var/log/client1.log
  • /var/log/client2.log

Network Layout

Environment

• OS: Ubuntu
• Tools: rsyslog

Part 1 - Configure the rsyslog Server

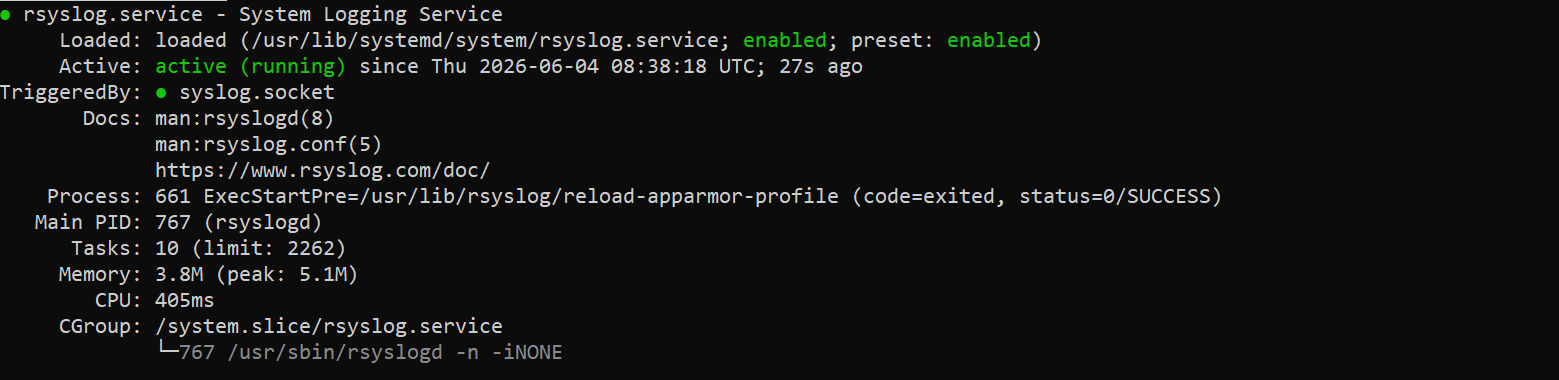

Verify rsyslog

sudo systemctl status rsyslog

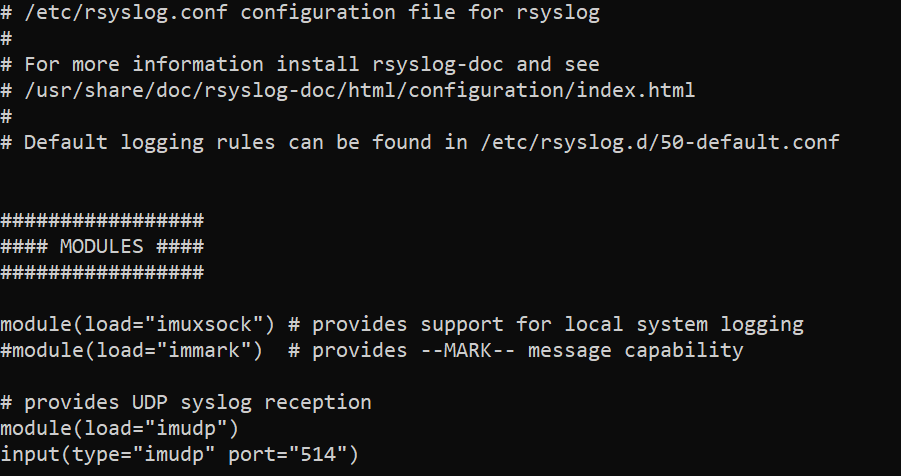

Enable UDP Syslog reception and restart the rsyslog service

sudo nano /etc/rsyslog.conf
sudo systemctl restart rsyslog

Verify server is listening on port 514

ss -ulnp | grep 514

Part 2 - Separate logs by Client

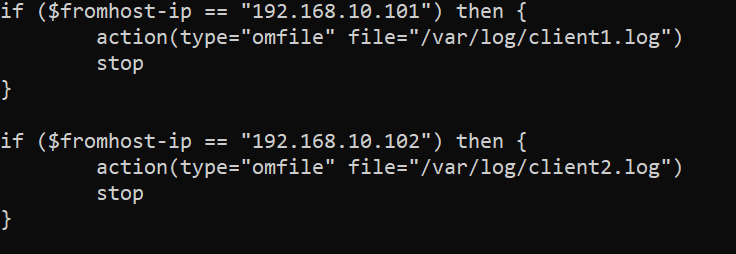

sudo nano /etc/rsyslog.d/30-multi-client.conf
sudo systemctl restart rsyslog

Part 3 - Configure Client1 and Client2

sudo nano /etc/rsyslog.d/10-remote.conf
sudo systemctl restart rsyslog

Part 4 - Test Log Delivery

from Client1:

logger -t CLIENT1 "hello from Client1"

from Client2:

logger -t CLIENT2 "hello from Client2"

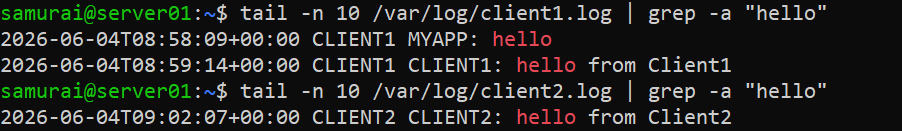

from Server:

tail -n 10 /var/log/client1.log | grep -a "hello"
tail -n 10 /var/log/client1.log | grep -a "hello"
