Objective

The goal of this lab is to design and implement a basic DMZ (Demilitarized Zone) network using Linux virtual machines, understand routing between network segments, and apply nftables as a stateful firewall.

Network Topology

LAN (User Network)		DMZ (Service Network)
192.168.10.0/24			192.168.20.0/24
__________________		_____________________

Client VM			Server VM
192.168.10.101			192.168.20.10
	|				|
	|				|
	________ Firewall VM ___________
		(Router + Firewall)

VM & Routing Configuration

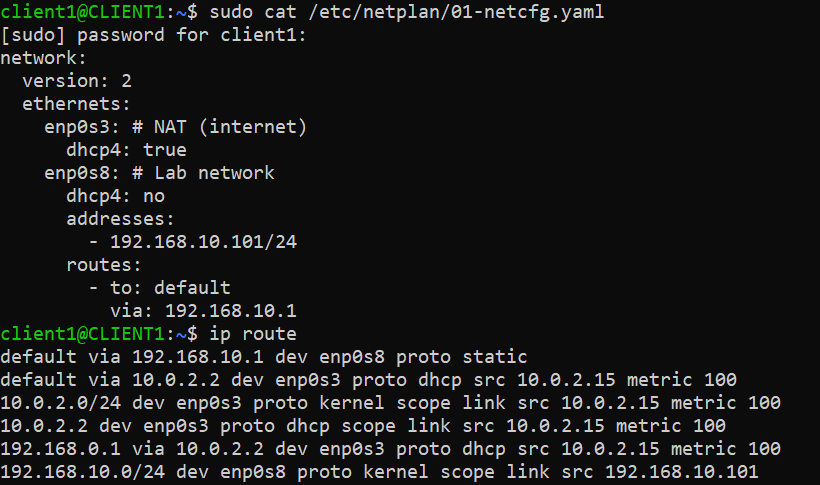

Client VM

client-config

sudo netplan try
sudo netplan apply

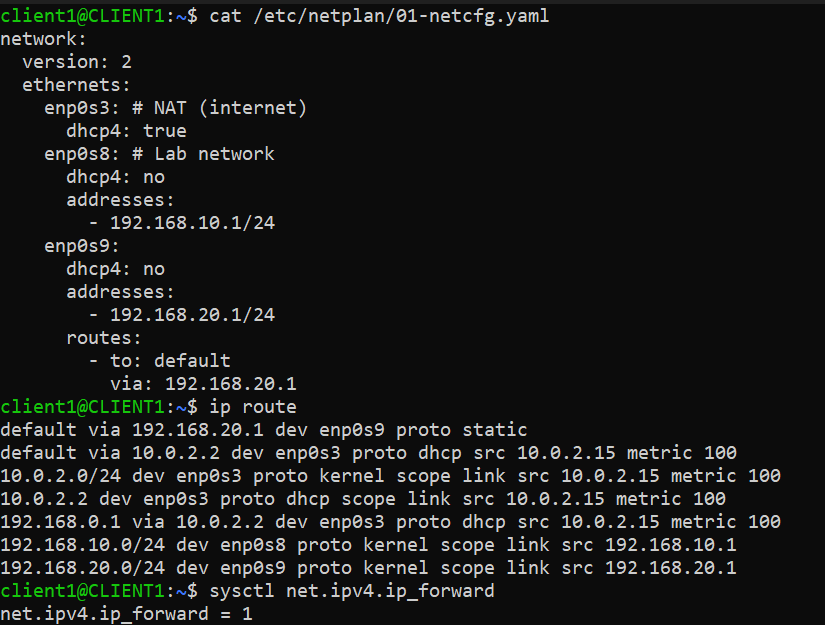

Firewall VM (Core Router)

firewall-config

sudo netplan try
sudo netplan apply

The Firewall MUST ENABLE packet forwarding:

Temporary enable:

sudo sysctl -w net.ipv4.ip_forward=1

Permanent enable:

echo "net.ipv4.ip_forward=1" | sudo tee /etc/sysctl.d/99-ipforward.conf
sudo sysctl --system

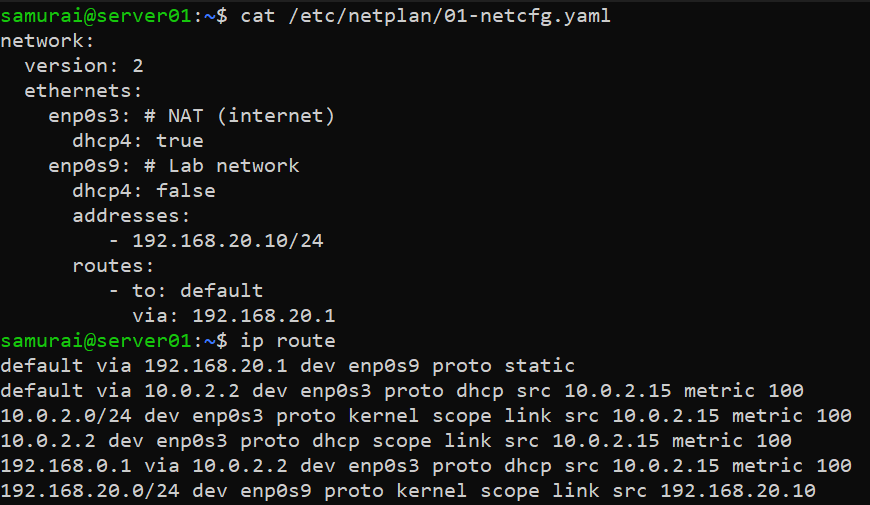

Server VM (DMZ Host)

server-config

sudo netplan try
sudo netplan apply

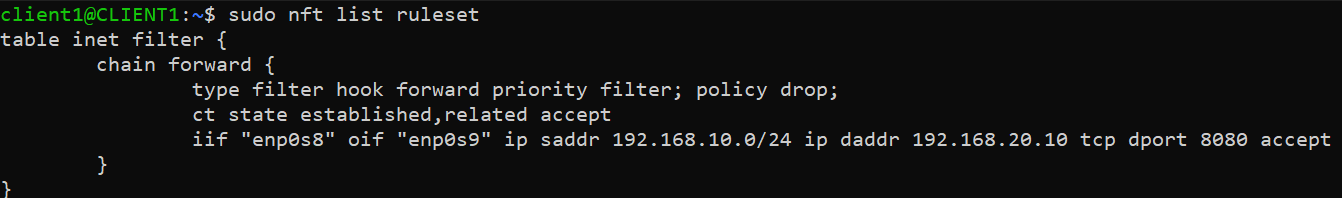

nftables Firewall Configuration

Step 1 - Create table

sudo nft add table inet filter

Step 2 - Create FORWARD chain (core DMZ control point)

sudo nft add chain inet filter forward \
'{ type filter hook forward priority 0; policy drop; }'

Step 3 - Allow return traffic (stateful firewall behavior)

sudo nft add rule inet filter forward \
ct state established,related accept
iif enp0s8 oif enp0s9

Step 4 - Allow LAN -> DMZ HTTP access (TCP 8080)

sudo nft add rule inet filter forward \
ip saddr 192.168.10.101 \
ip daddr 192.168.20.10 \
tcp dport 8080 accept

nftable

Services Used

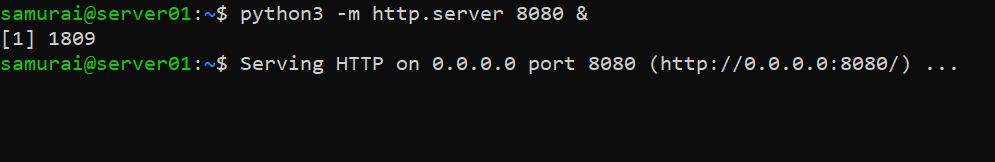

On Server VM:

python3 -m http.server 8080 &

This simulates a simple HTTP service.

webserver

Testing

LAN to DMZ connectivity (HTTP)

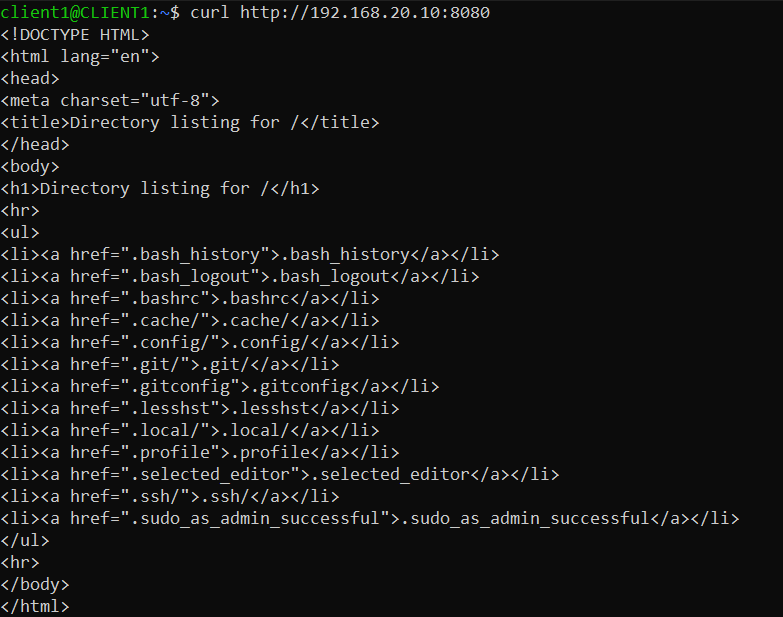

From Client VM:

curl http://192.168.20.10:8080

curl

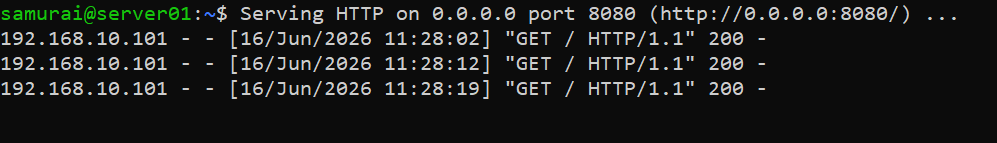

From Server VM:

status

Firewall verification

Check packet flow:

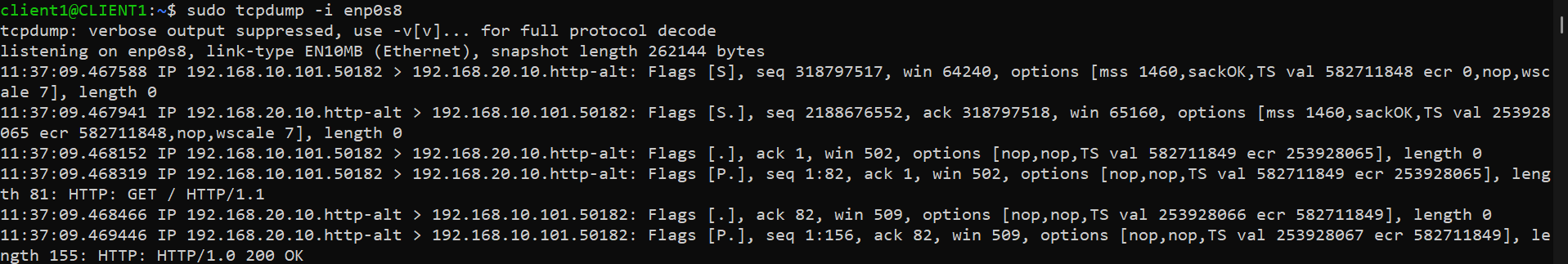

sudo tcpdump -i enp0s8

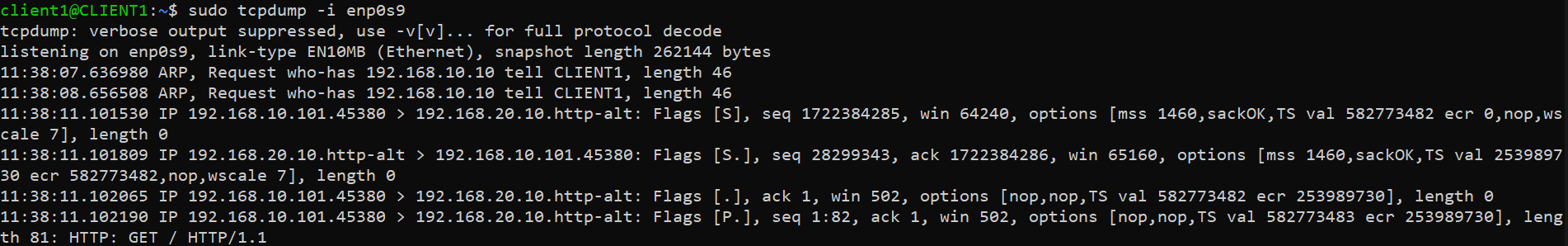

sudo tcpdump -i enp0s9

enp0s8 enp0s9

Expected:

  • Requests visible on enp0s8
  • Forwarded traffic visible on enp0s9
