🧪 Linux Networking and Service Exposure Lab

📌 Objective

This lab simulates real-world Linux networking issues and teaches how to troubleshoot:

• Service availability
• Port listening
• Firewall behavior (UFW)
• Binding (’localhost’ vs external access)
• Network-layer debugging

⚙️ Environment

• OS: Ubuntu (VM + Bridged Adapter)
• Service: Nginx
• Tools: ss, curl, ufw, systemctl
• Host machine for external testing (Powershell)

🟢 Stage 1

Verify service:

systemctl status nginx

Expected outcome: Active (running)

Check listening ports:

ss - tuln | grep :80

Expected outcome: 0.0.0.0:80

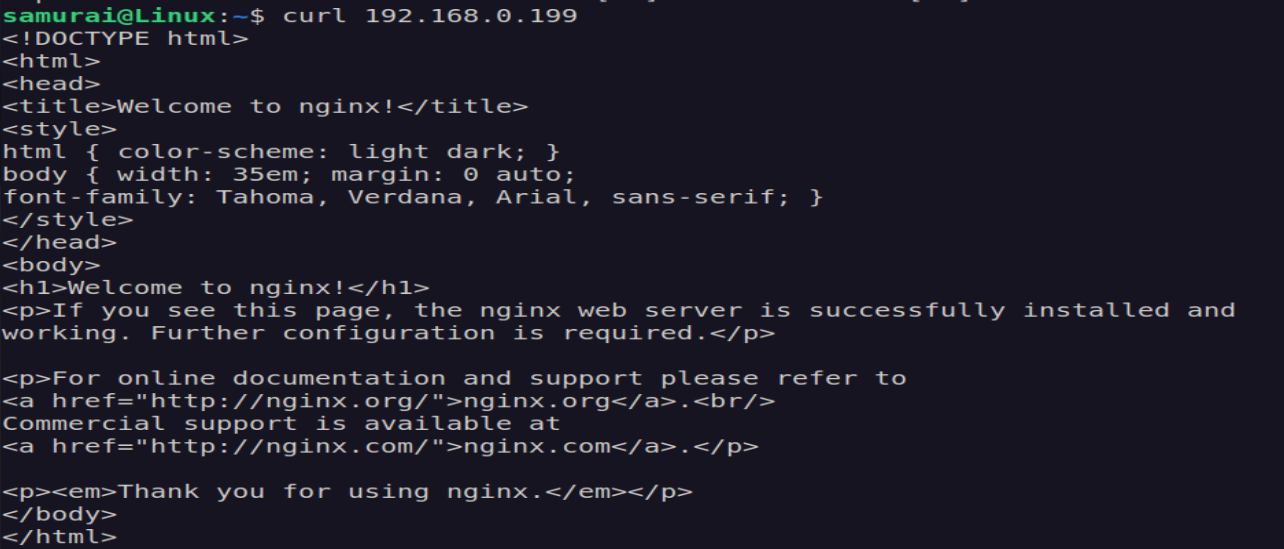

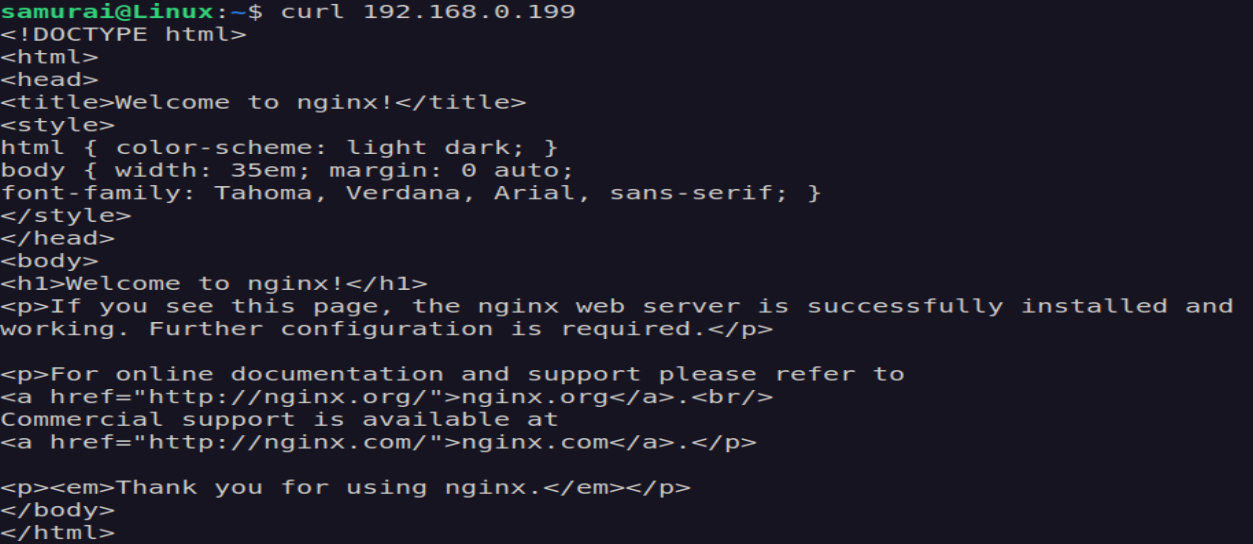

Test locally:

curl 192.160.0.199

Test from host:

Test-NetConnection 192.168.0.199 -Port 80

🔴 Stage 2 - Break the System

🧪 Challenge 1 - Firewall Block

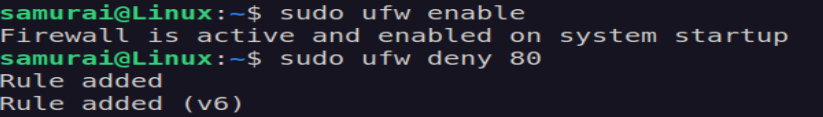

sudo ufw enable
sudo ufw deny 80

Expected Outcome:

• Local curl works

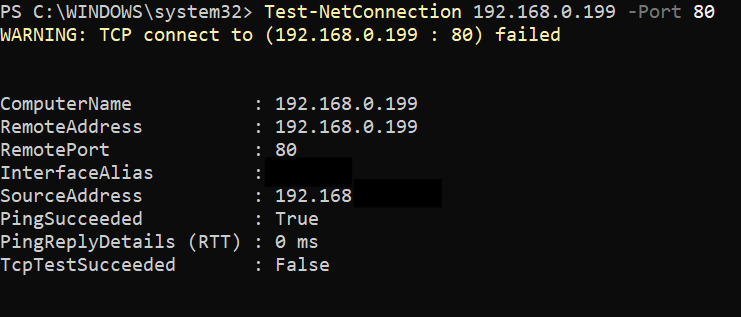

• External connection fails

🔥 Debugging

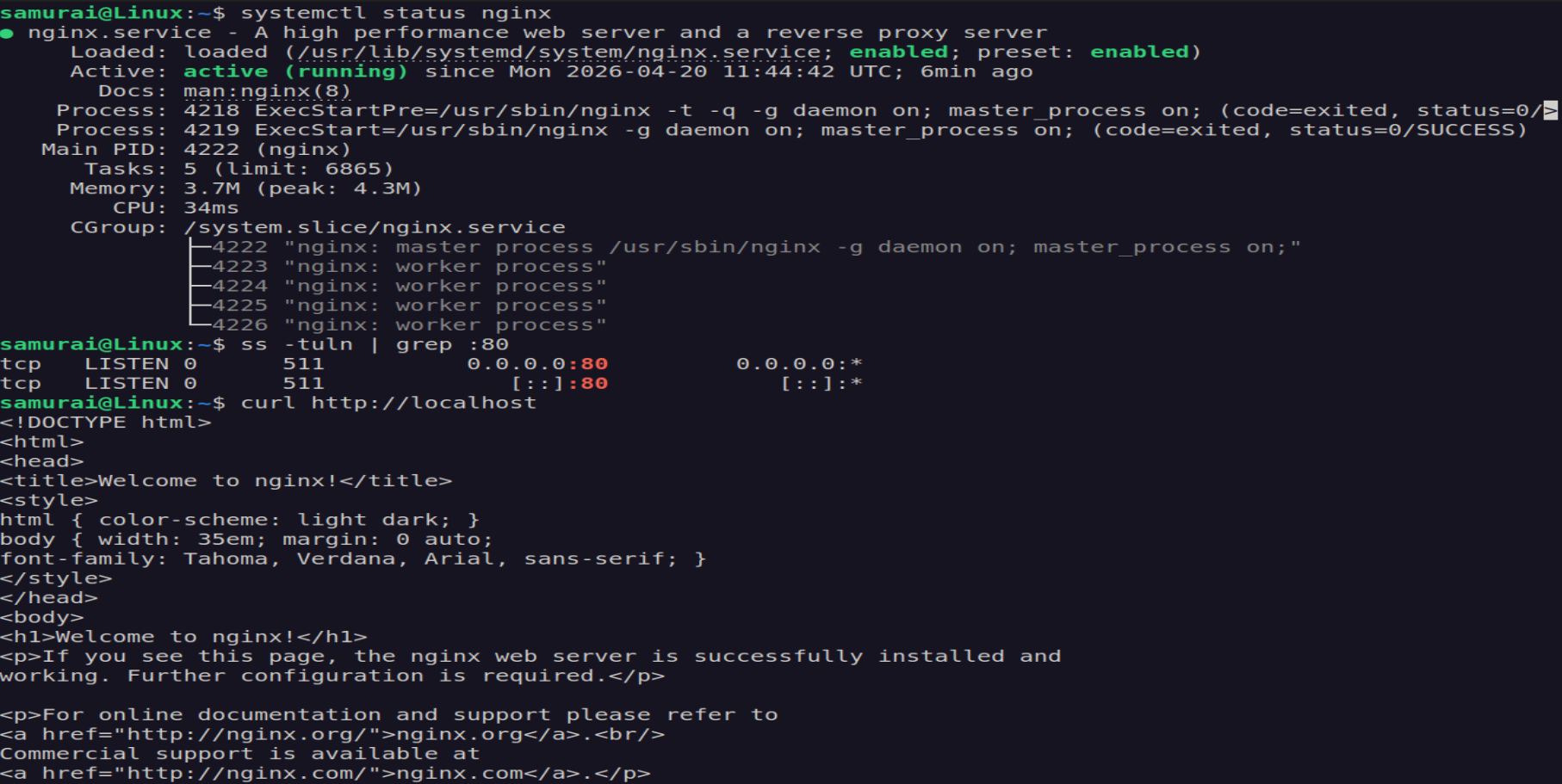

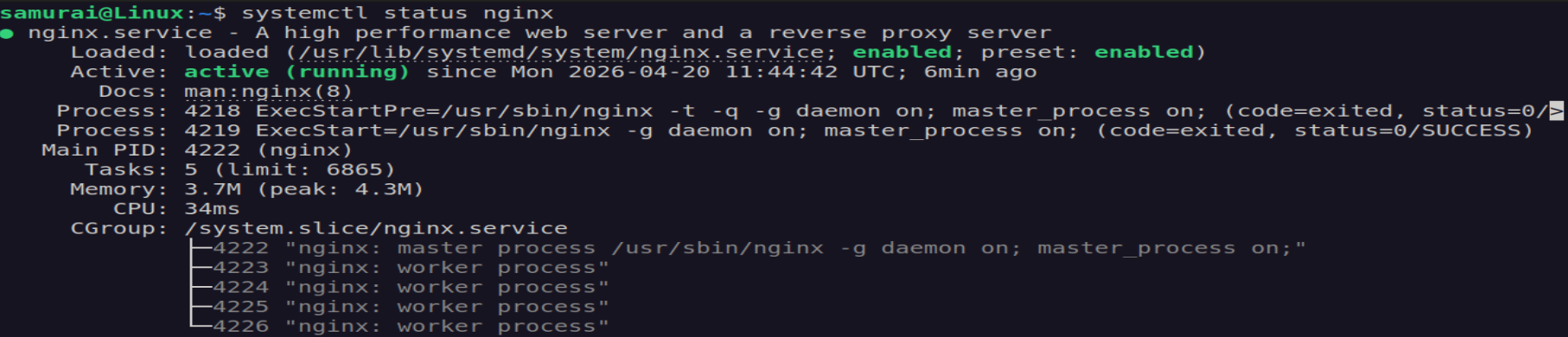

1. Confirm service is running:

systemctl status nginx

2. Confirm port is listening:

ss -tuln | grep :80

Expected Outcome:

0.0.0.0:80

3. Test local access:

curl http://localhost

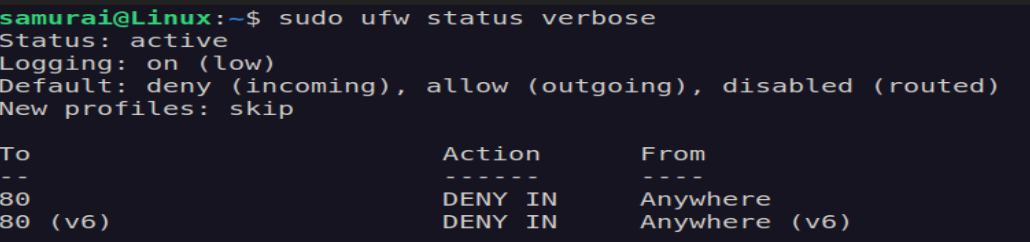

4. Check firewall state:

sudo ufw status verbose

🧠 Diagnosis

Service run locally but not externally -> firewall is blocking TCP traffic

🛠 Fix

sudo ufw allow 80/tcp

or

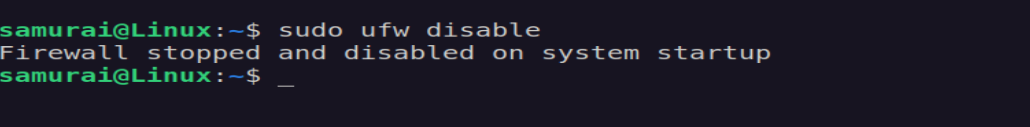

sudo ufw disable

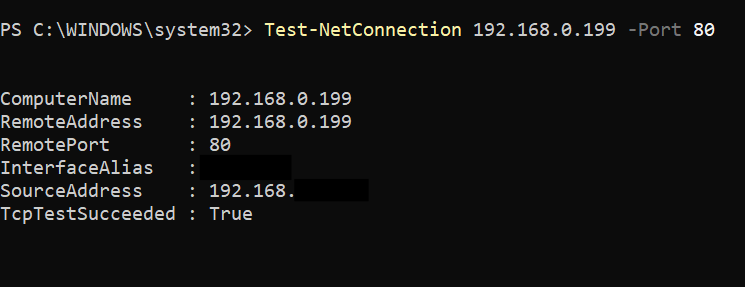

✅ Verification

From host:

🧠 Key lesson

1. PING working does not mean service is reachable
2. Firewall blocks TCP, not ICMP in many cases

🧪 Challenge 2 - Bind to localhost only

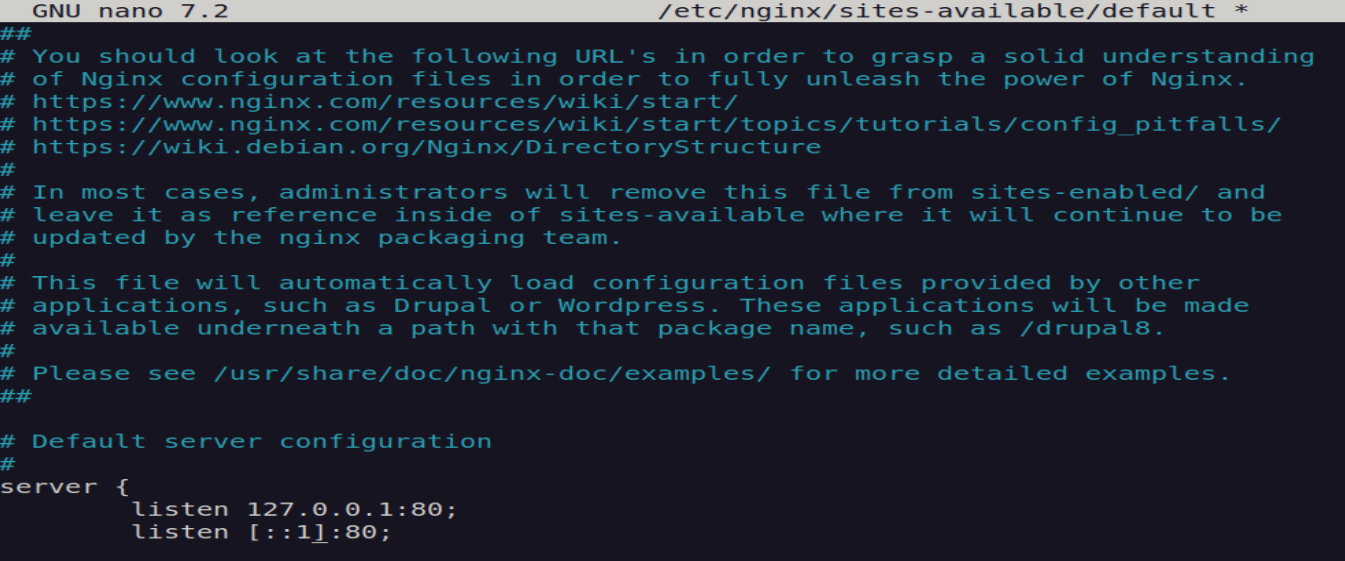

Edit conf:

sudo nano /etc/nginx/sites-available/default

Change:

listen 127.0.0.1:80;
listen [::1]:80;

Restart:

sudo systemctl restart nginx

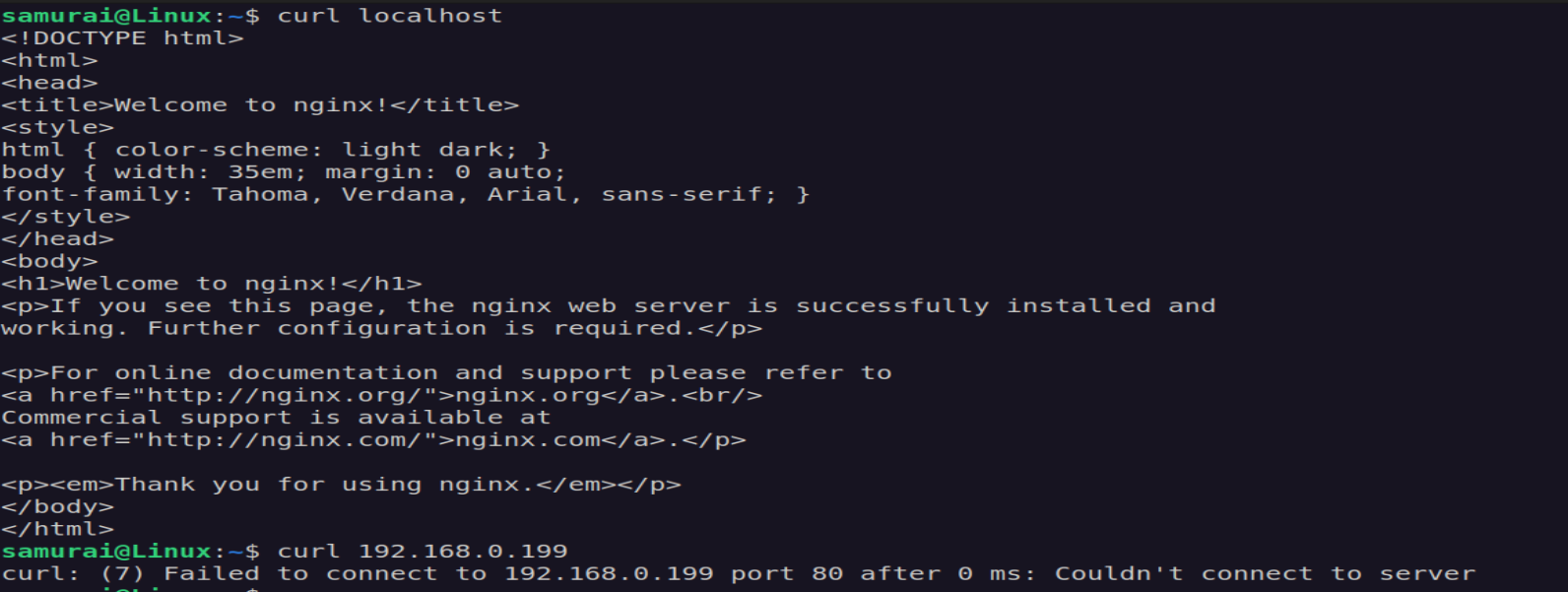

Expected outcome:

• curl localhost works ✔
• curl IP fails ❌

• Host access fails ❌

🔥 Debugging

1. Check service:

systemctl status nginx

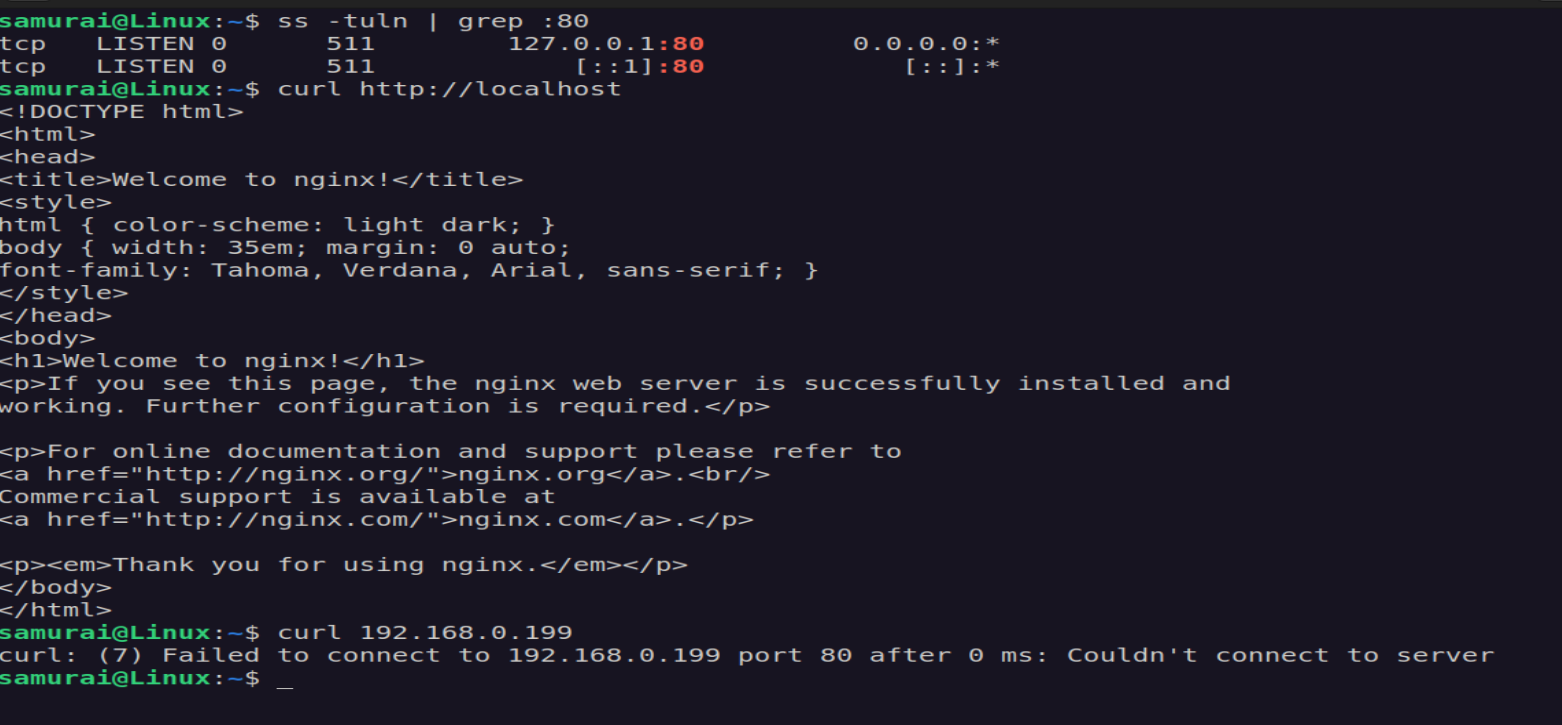

2. Check listening interface:

ss -tuln | grep :80

Expected Outcome:

127.0.0.1:80

3. Test localhost explicitly:

curl http://localhost

4. Test network IP address:

curl 192.168.0.199

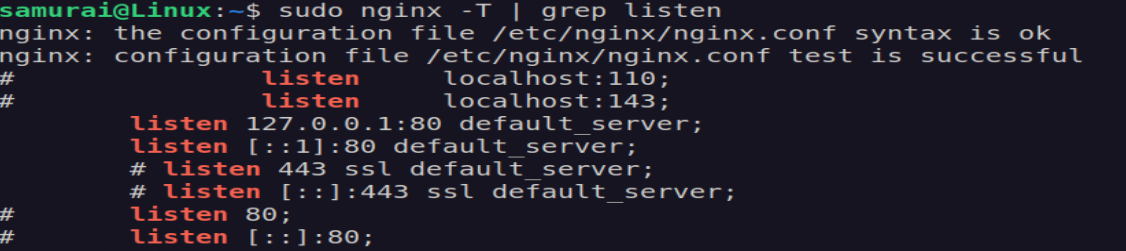

5. Confirm config source:

nginx -T | grep listen

🧠 Diagnosis

Service is restricted to loopback interface -> not exposed to network

🛠 Fix

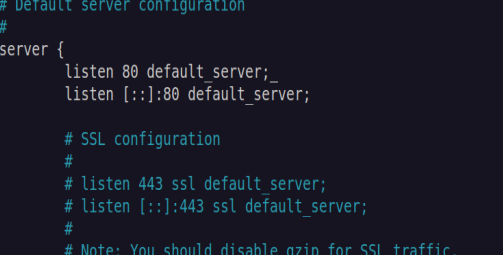

Edit config:

sudo nano /etc/nginx/sites-available/default

Restart:

sudo systemctl restart nginx

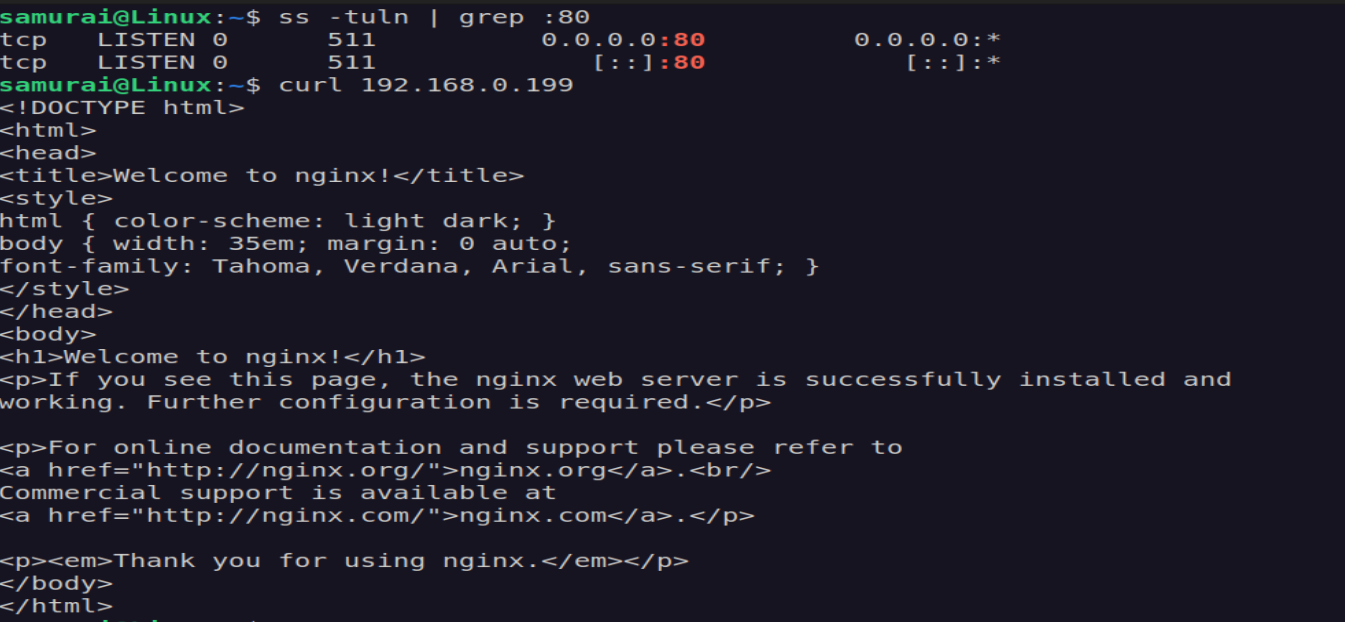

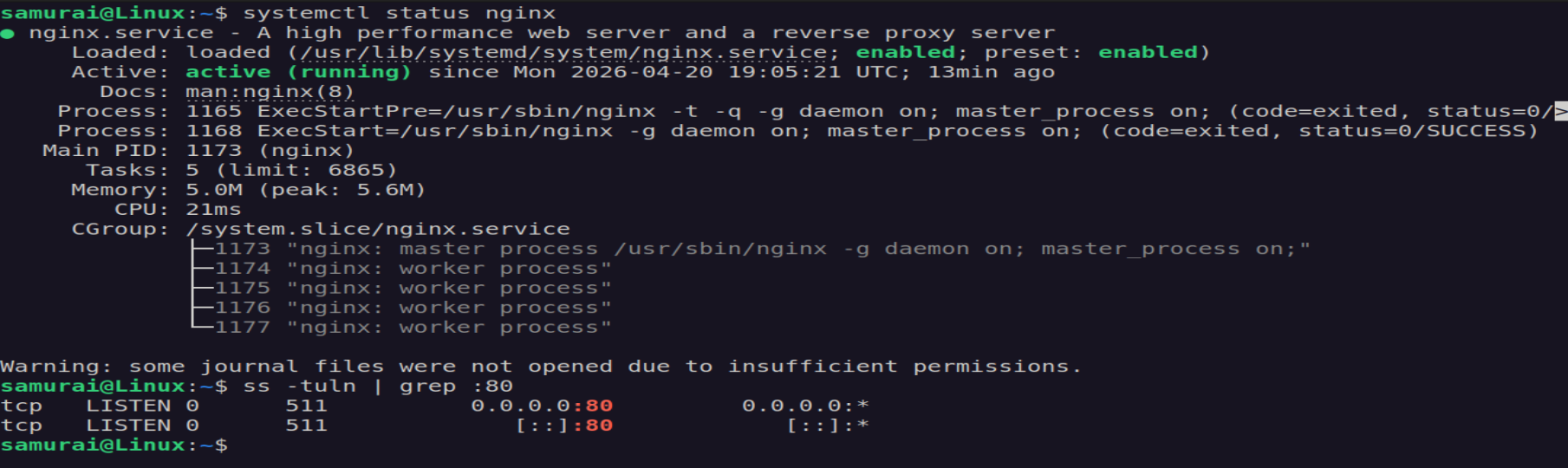

✅ Verification

ss -tuln | grep :80
curl http://192.168.0.199

🧠 Key lesson

Binding defines WHO can connect, not whether service runs

🧪 Challenge 3 - Wrong Port

Edit config:

listen 8080;
listen [::]:8080;

Restart:

sudo systemctl restart nginx

Expected outcome:

• Port 80 fails ❌
• Port 8080 works ✔

🔥 Debugging

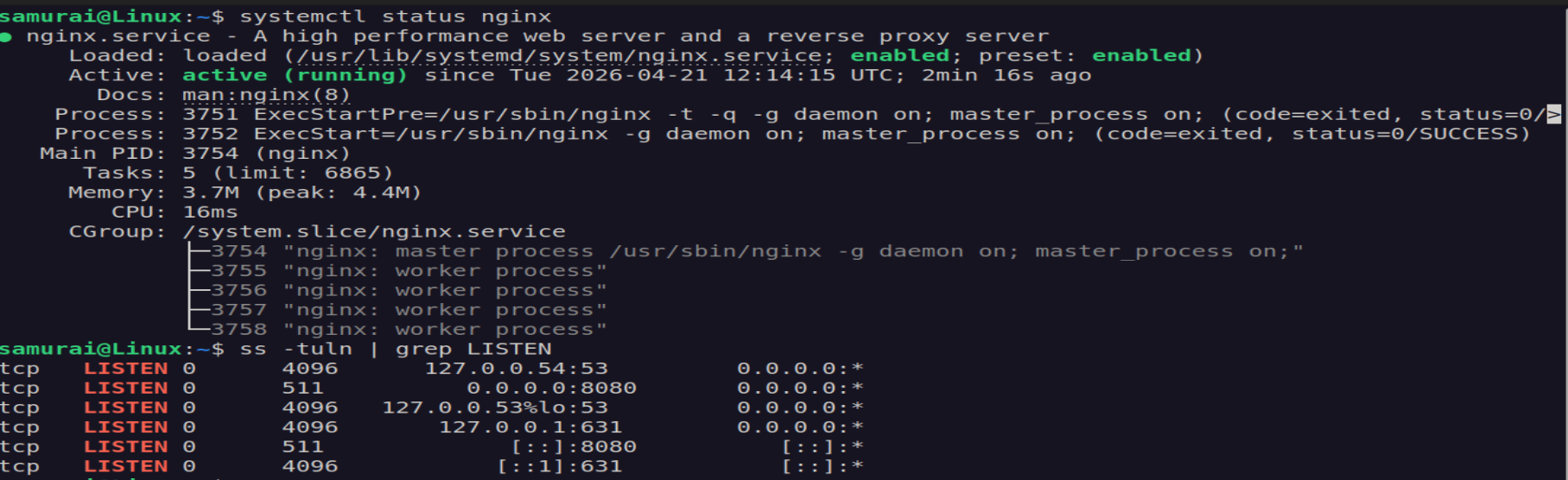

1. Check service status:

systemctl status nginx

2. Check listening ports:

ss -tuln | grep LISTEN

👉 Nginx is NOT listening on port 80

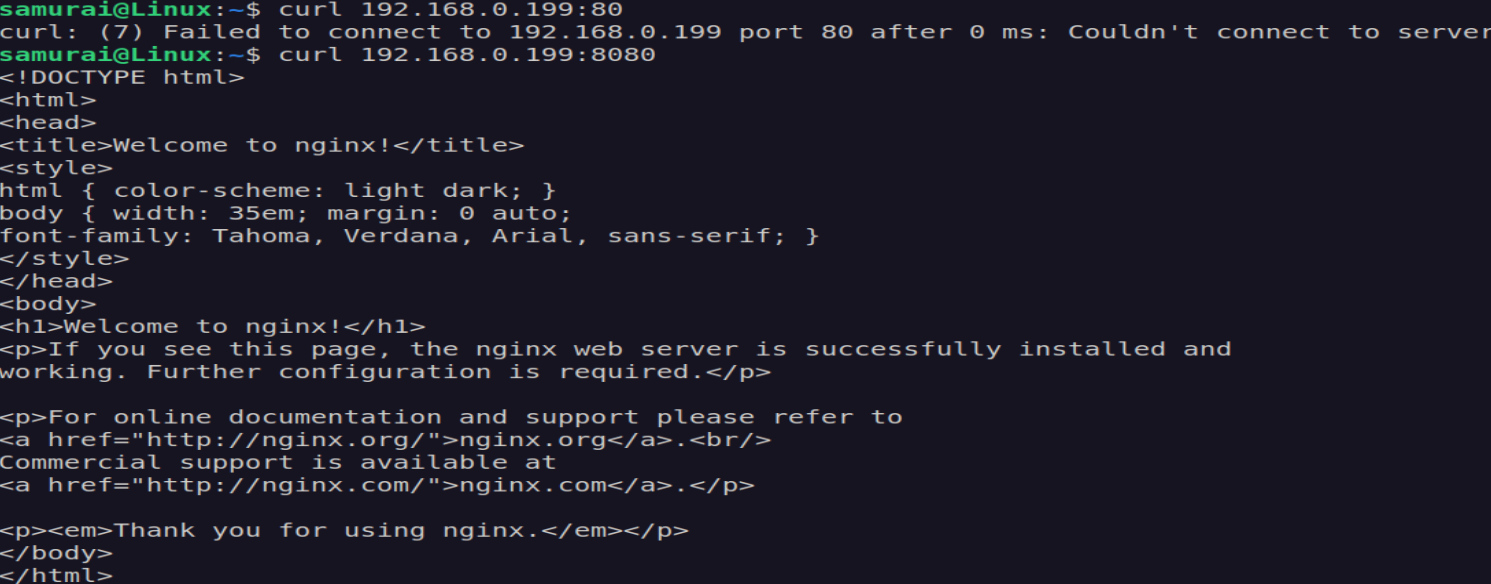

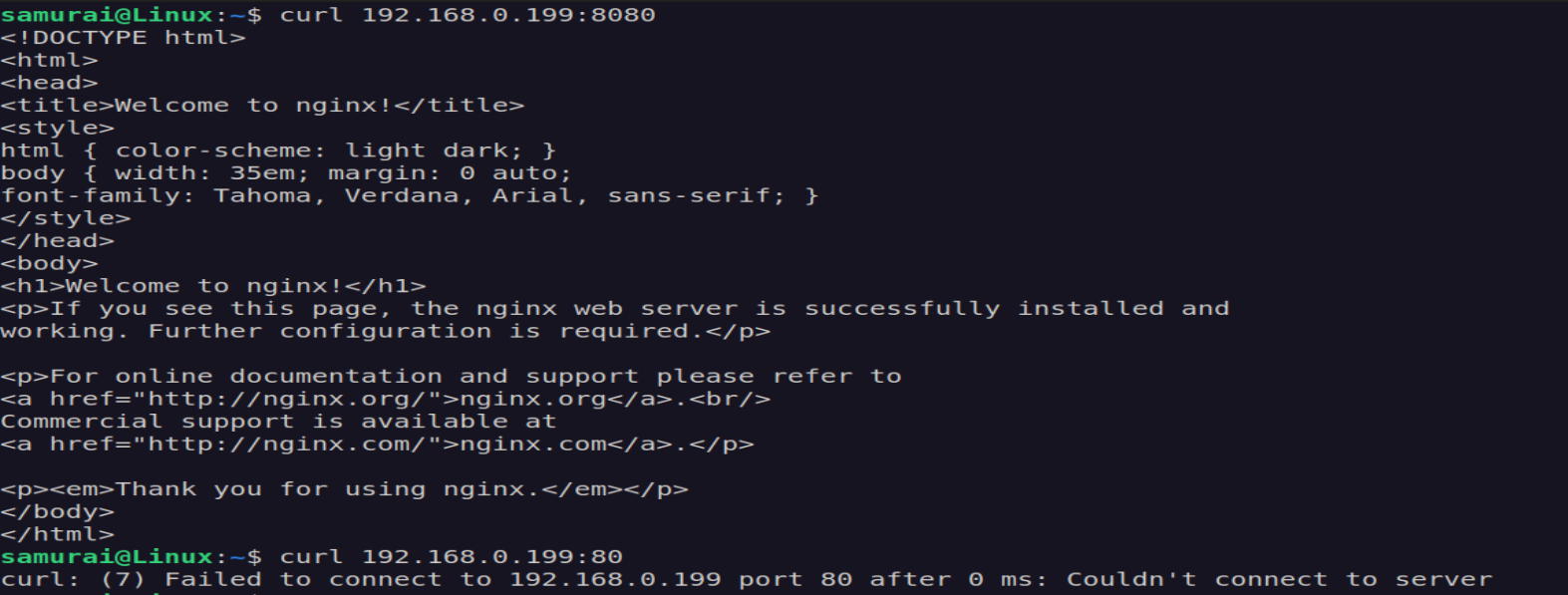

3. Test discovered port locally:

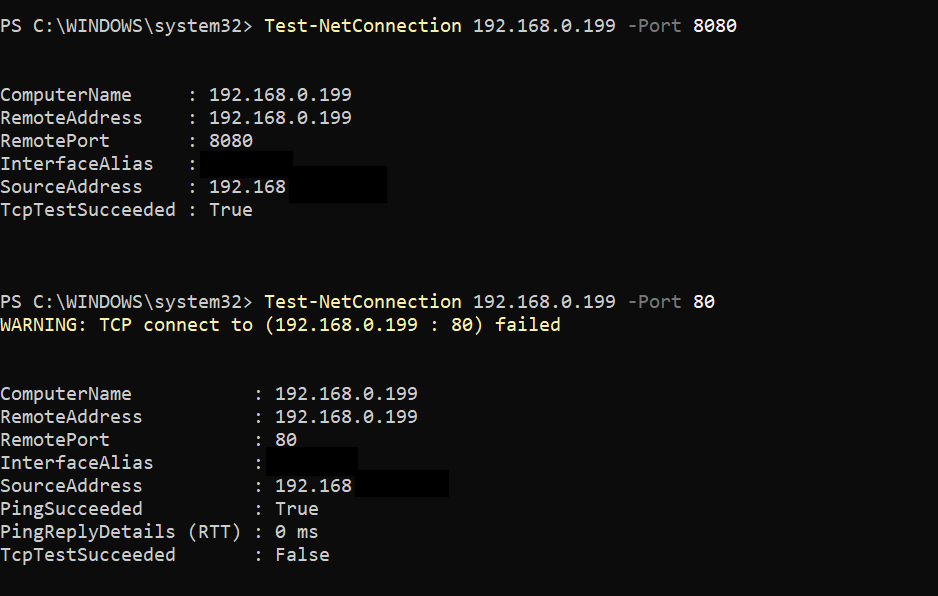

4. Verify from host:

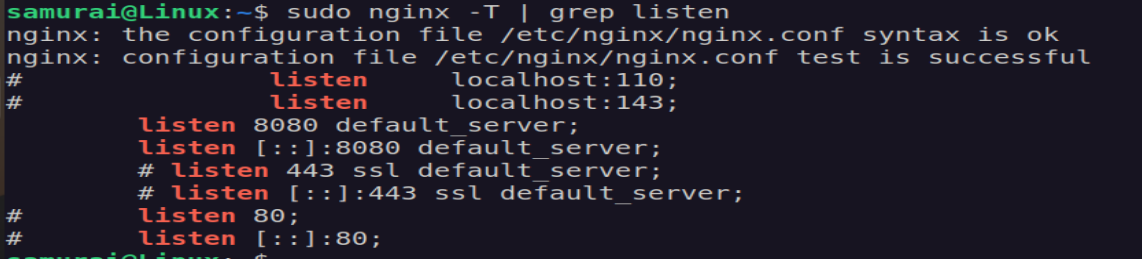

5. Confirm config:

nginx -T | grep

Expected Outcome:

listen 8080;

🧠 Diagnosis

Service is running on the wrong port -> client is connecting to the wrong port

🛠 Fix

Edit config:

sudo nano /etc/nginx/sites-available/default

listen 80 default_server;
listen [::]:80 default_server;

Restart:

sudo systemtctl restart nginx

✅ Verification

ss -tuln | grep :80

Test-NetConnection 192.168.0.199 -Port 80

🧠 Key lesson

Service may be fully healthy but unreachable due to port mismatch

🔥 Debugging hierarchy

1. Service (running?)
2. Port (listening?)
3. Binding (where?)
4. Firewall (blocked?)
5. Network (reachable?)
