🧪 Linux Permission and Access Control Lab

📌 Objective

To test how Linux file permissions and access control mechanisms work in a multi-user environment.

⚙️ Environment

• OS: Ubuntu
• Tools: chmod, chown, ls, groups, sudo
• Users: alice, bob, admin
• Groups: devs, managers

🛠️ Setup

1. Create Users

sudo adduser alice
sudo adduser bob
sudo adduser admin

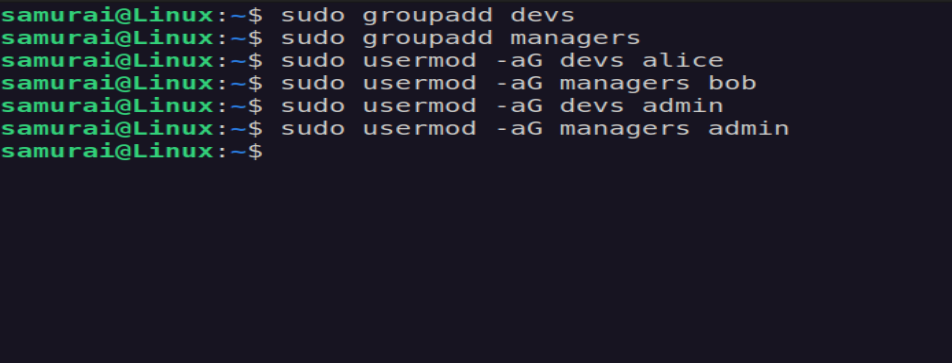

2. Create Groups

sudo groupadd devs
sudo groupadd managers

Assign users:

sudo usermod -aG devs alice
sudo usermod -aG managers bob
sudo usermod -aG devs admin
sudo usermod -aG managers admin

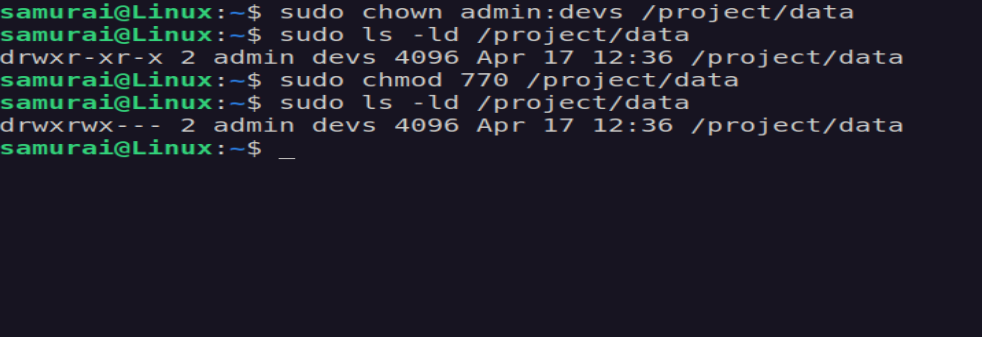

3. Create Shared Directory

sudo mkdir -p /project/data
sudo chown admin:devs /project/data

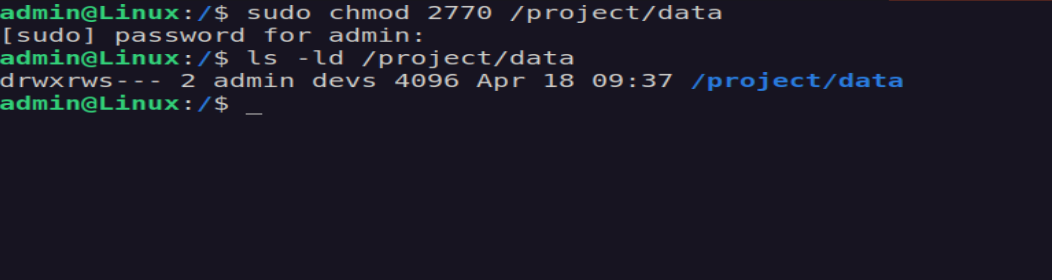

sudo chmod 2770 /project/data

P.S (setgid - 2) ensures all new files inherit the devs group

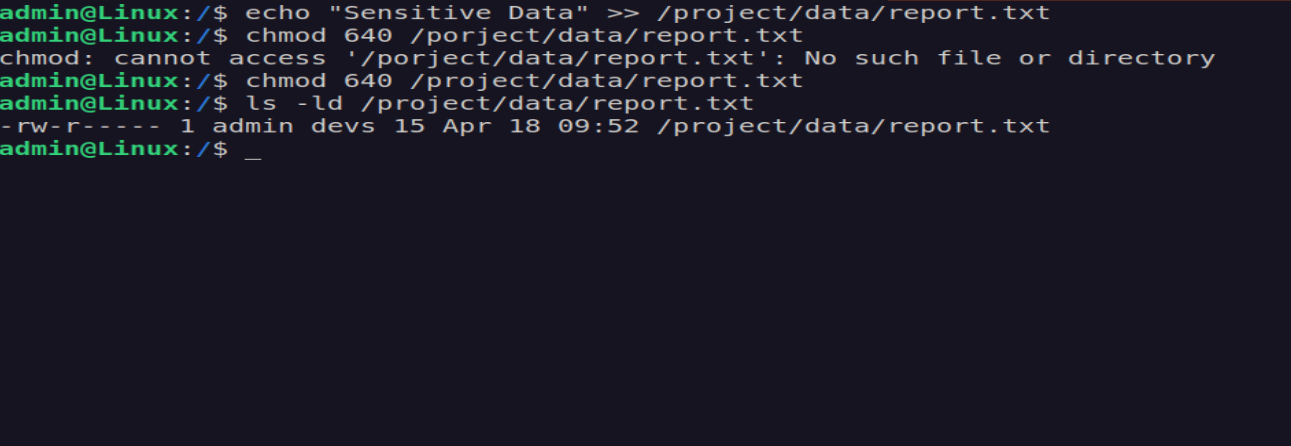

4. File Creation as admin

sudo -u admin
echo "Sensitive data" > /project/data/report.txt

Set permissions and ownership:

sudo chmod 640 /project/data/report.txt

🚨 Scenario: Permission Denied

Problem:

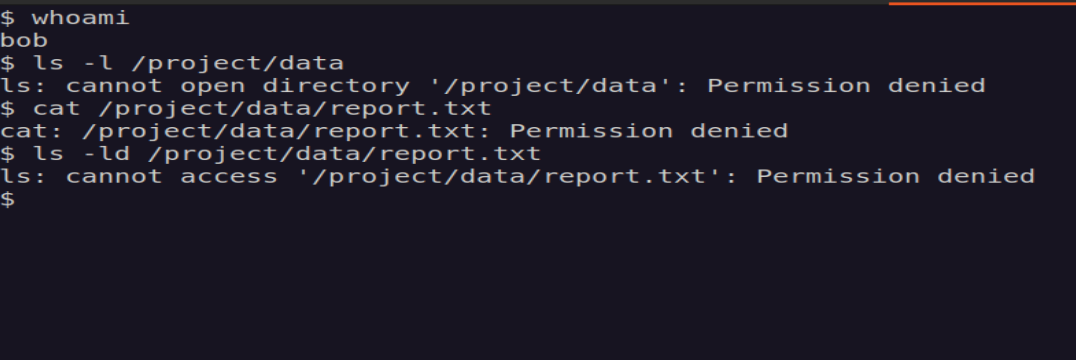

User bob cannot access /project/data/report.txt

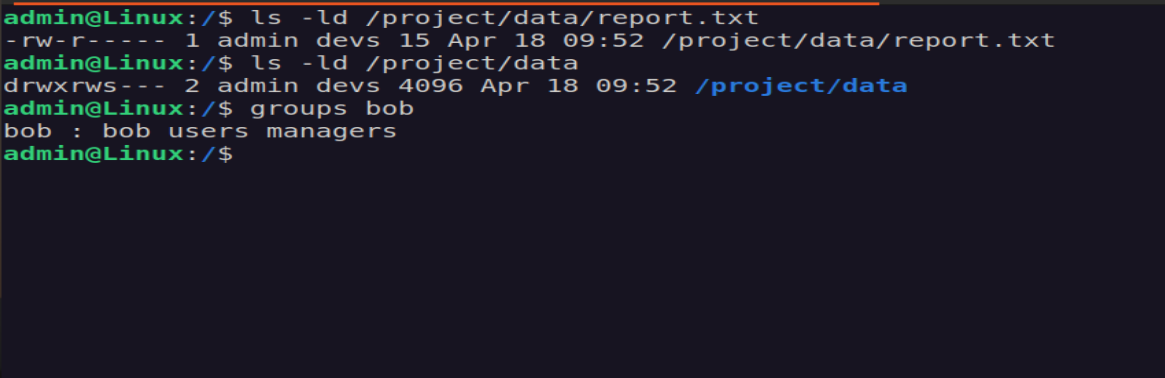

🔍 Debugging Steps

1. Check file permissions

ls -ld /project/data/report.txt

2. Check directory permissions

ls -ld /project/data

3. Check user group membership

groups bob

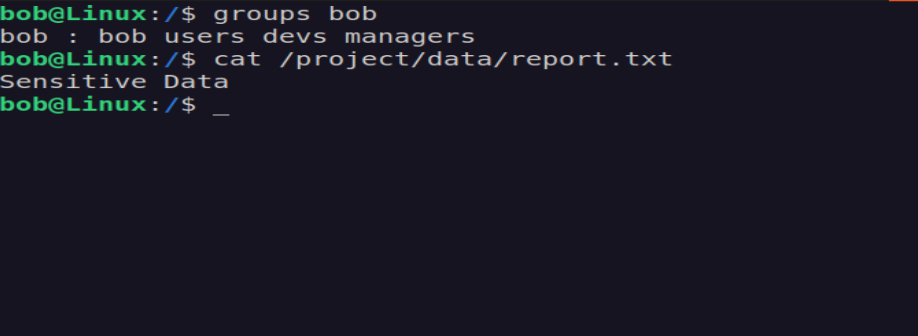

🛠 - Fix (Least Privilege)

Add bob to devs

sudo usermod -aG devs bob

Sticky Bit (+t)

chmod +t /project/data

• Prevents users from deleting files they do not own

SetGID (g+s)

chmod g+s /project/data

• Ensures consistent group ownership for new files

🧪 Challenge 1

Configure /project/data so:

• only admin can delete files
• developers can modify files

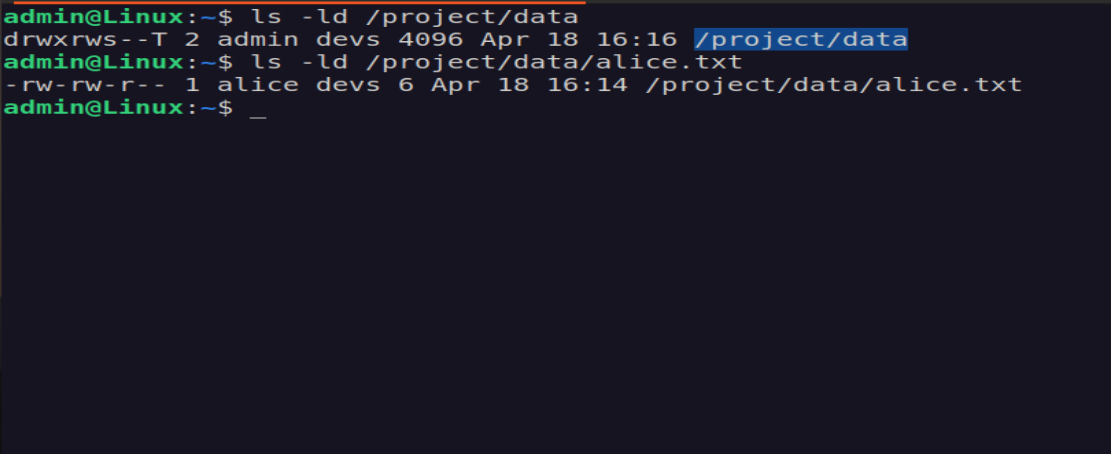

ls -ld /project/data
ls -ld /project/data/alice.txt

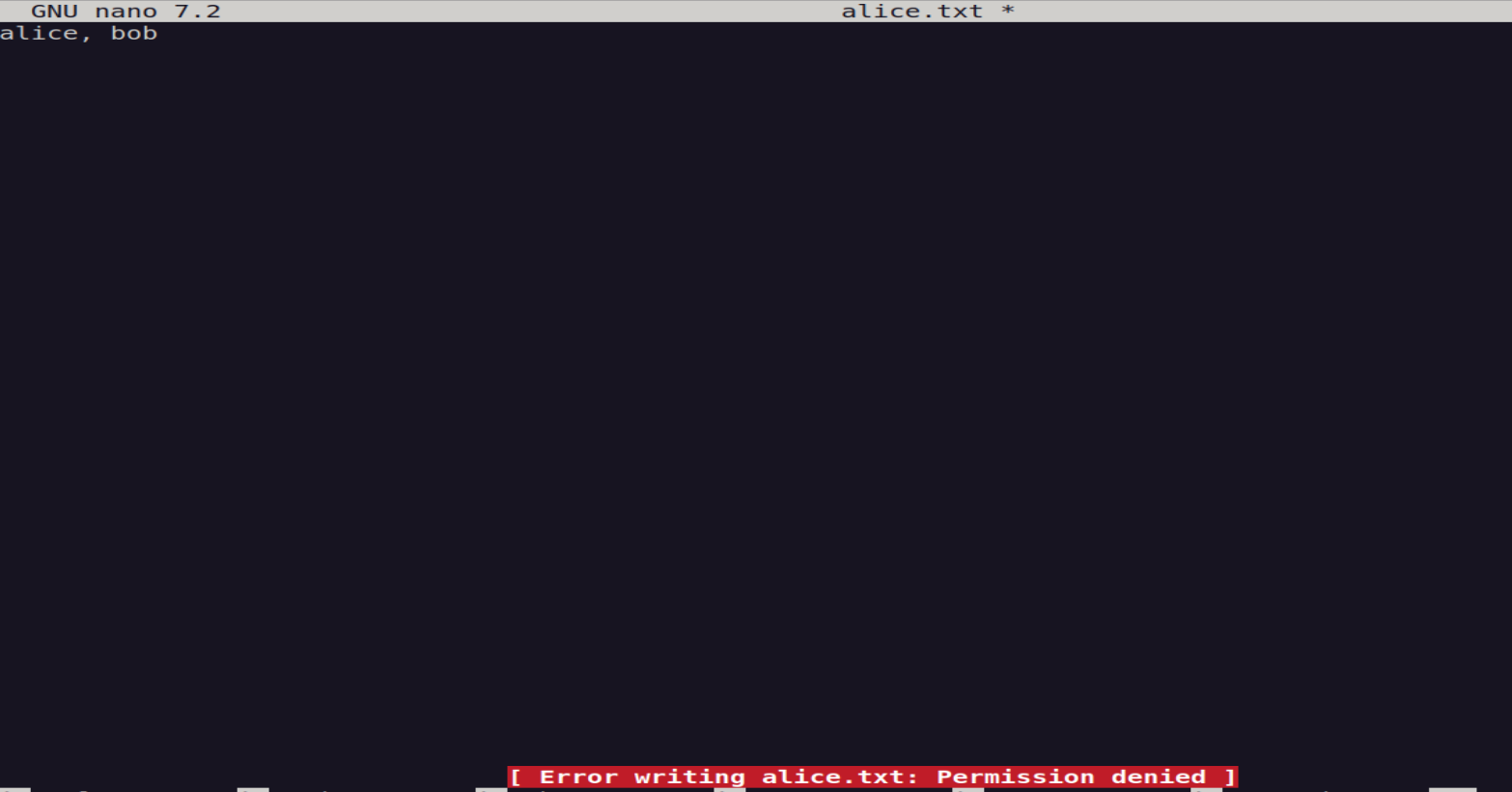

As the directory was already configured to satisfy the requirements — ownership set to admin:devs with permissions rwxrws–T (SetGID + sticky bit). When Alice (a devs member) created a file inside the directory, it was correctly assigned ownership alice:devs with permissions rw-rw-r–, confirming that SetGID inheritance was working as expected. However, when Bob (also a devs member) attempted to edit the file’s content, he received Permission Denied despite having group write access.

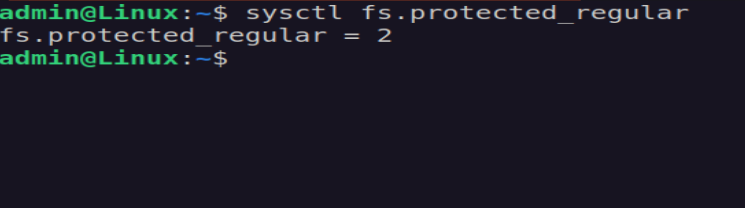

Root Cause After investigation, the issue was traced to a kernel-level security feature introduced in newer Linux versions. Ubuntu 24.04.3 ships with the following sysctl setting enabled by default: fs.protected_regular = 2

This setting restricts write access to files located in sticky bit directories — even for users who have the appropriate group write permissions. When set to 2, the kernel blocks any process from writing to a file it does not own inside a sticky+SetGID directory, regardless of what the Unix permission bits or ACLs say.

🧪 Challenge 2

Create a file where:

• alice can read
• bob cannot
• group has no access

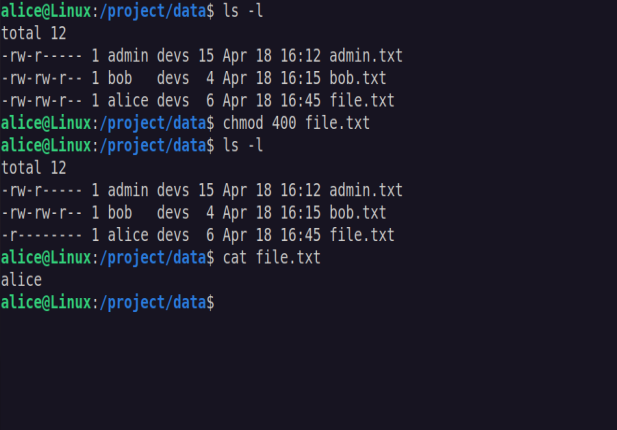

touch file.txt
chmod 400 file.txt

🧪 Challenge 3

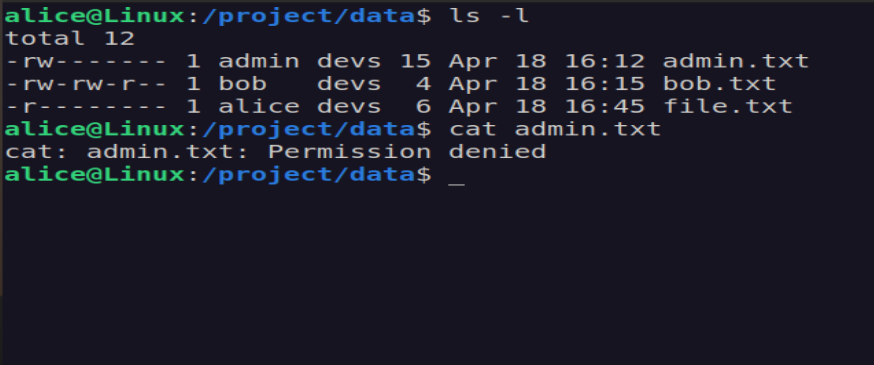

Let’s break access intentionally:

chmod 600 /project/data/admin.txt

and let’s debug why access fails for other users.

I checked the file with ls -l /project/data/report.txt and saw it is owned by admin with group developers. Alice is a member of the devs group, but the file permissions are set to 600, which means the group has no permissions. Therefore, even though alice is in the correct group, she cannot read the file because group access is disabled.

🧠 Key Takeaways

File vs Directory Permissions

• File permissions control content access (read/write)
• Directory permissions control file operations (create/delete/access)

Group Membership ≠ Access

• Being in the correct group does not guarantee access
• Access depends on actual permission bits (rwx)

Deletion Depends on Directory, Not File

• A user can delete a file if they have write + execute on the directory
• Sticky bit (+t) restricts deletion to file owner, directory owner, root

SetGID Enables Collaboration

• Ensures all new files inherit the directory’s group
• Prevents inconsistent group ownership in shared environments

Umask Affects Default Security

• Controls default permissions for new files
• Misconfigured umask can silently break collaboration
